Product Description
- Each base has a Product Identification Code (PIC) for material traceability, the name CROSBY or CG, and a size forged into it.
- Based on the catalog breaking strength of wire rope, Crosby wire rope clips have an efficiency rating of 80% for 1/8” - 7/8” sizes, and 90% for sizes 1” through 3-1/2”.
- Entire Clip is Galvanized to resist corrosive and rusting action.
- Sizes 1/8” through 2-1/2” and 3” have forged bases.
- All Clips are individually bagged or tagged with proper application instructions and warning information.
- Clip sizes up through 1-1/2” have rolled threads.
- Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements.
- Importantly, these wire rope clips meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.

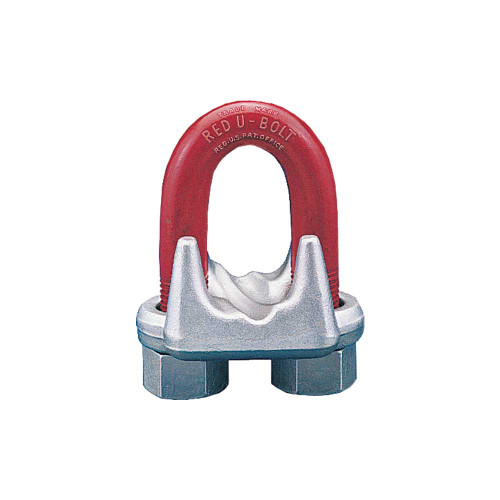

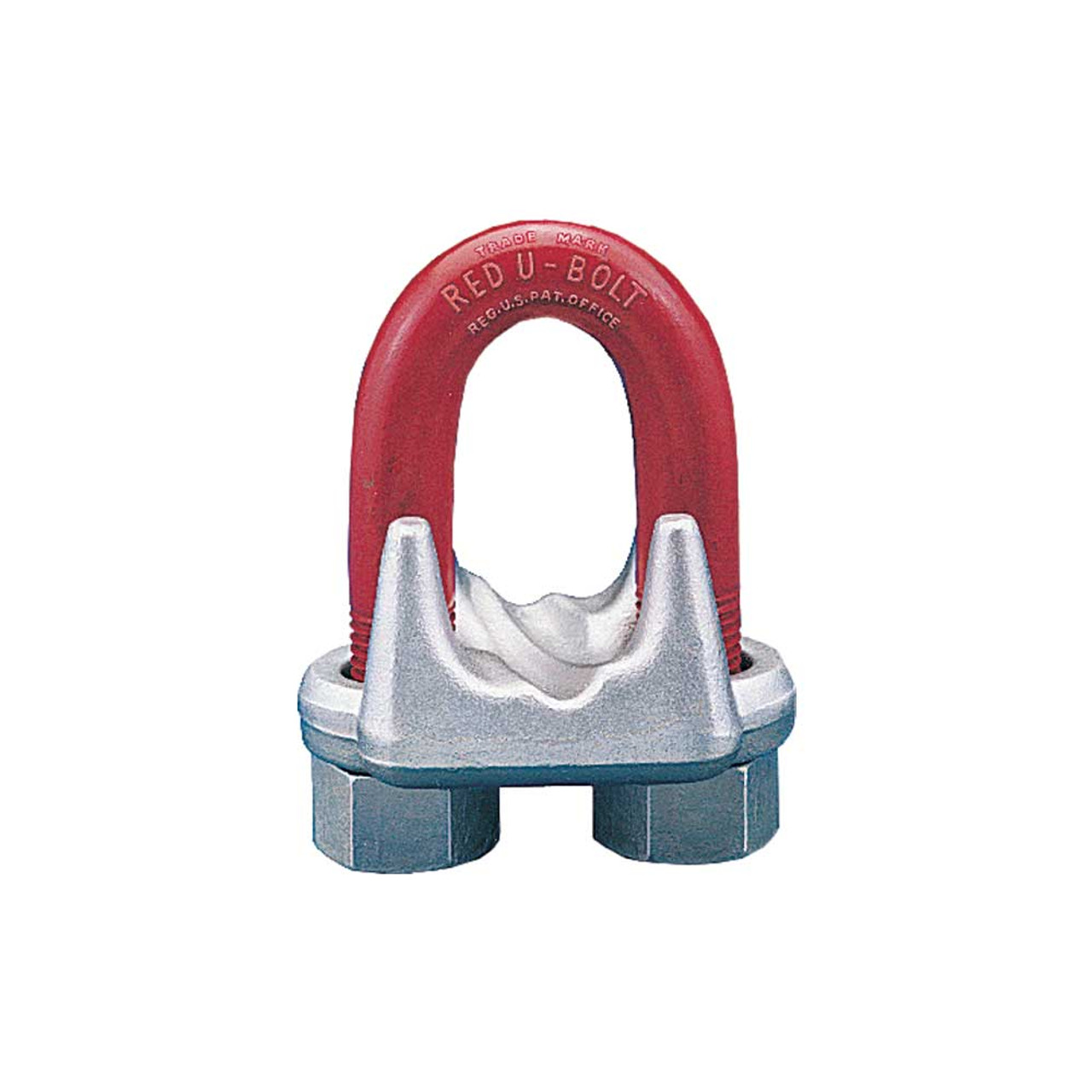

- Look for the Red-U-Bolt®, your assurance of Genuine Crosby Clips.
SAFETY INFORMATION
Crosby G-450/G-429N Wire Rope Clip Warnings & Application Instructions
